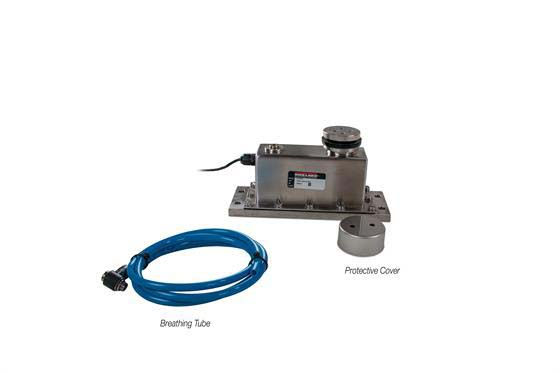

The Rice Lake RL260FD is a stainless steel fluid-damped single point load cell built for dynamic and checkweighing applications - the fluid damping absorbs vibration and shock so the cell settles fast on moving product. It has a protective cover and breather tube, is environmentally sealed to IP68, and carries NTEP (20-045) and cFMus approvals. 5 m cable.
This listing is the 2 kg capacity model, Rice Lake part 194928.
Rice Lake RL260FD 2 kg Stainless Steel Single Point Load Cell
SKU: 194928
$710.00 Regular Price
$660.30Sale Price
| Full Scale Output | 2.0 mV/V |
| Output Resistance | 350 (±3) ohm |
| Input Resistance | 400 (±20) ohm |
| Material/Finish | Stainless steel |
| Temperature | Compensated: 14 to 104 °F (-10 to 40 °C); Operating: 0 to 150 °F (-18 to 65 °C) |
| Seal Type | Environmentally sealed, IP68 |
| Safe Overload | 200% of full scale |
| Rated Excitation | 5 to 10 VDC |
| Combined Error | 0.017% full scale |
| Insulation Resistance | >5,000 megohm |
| Cable Length | 5 m |
| Cable Color Code | Green +Excitation; Black -Excitation; Red +Signal; W |
| Warranty | Two-year limited |
| Approvals | NTEP 20-045; cFMus |
Documentation:
