The Coti Global CG-MK4 is a stainless steel single point load cell, available in capacities from 10 lb to 100 lb. This capacity is not ntep approved. Features overload stop.
Interchangeable with: Artech SS61010, NCI Mark IV, Rice Lake RLMK4, Weigh-Tronix Mark IV.
This listing is the 100 lb model, Coti Global part CG-MK4 100 lb.
Coti Global CG-MK4 100 lb Stainless Steel Single Point Load Cell
SKU: CG-MK4 100 lb
$590.00 Regular Price
$548.70Sale Price
| Model | CG-MK4 |
| Material | Stainless Steel |
| Type | Single point load cell |
| Rated Capacity | 100 lb |
| Capacities In This Line | 10 lb to 100 lb |
| NTEP | Not NTEP approved |

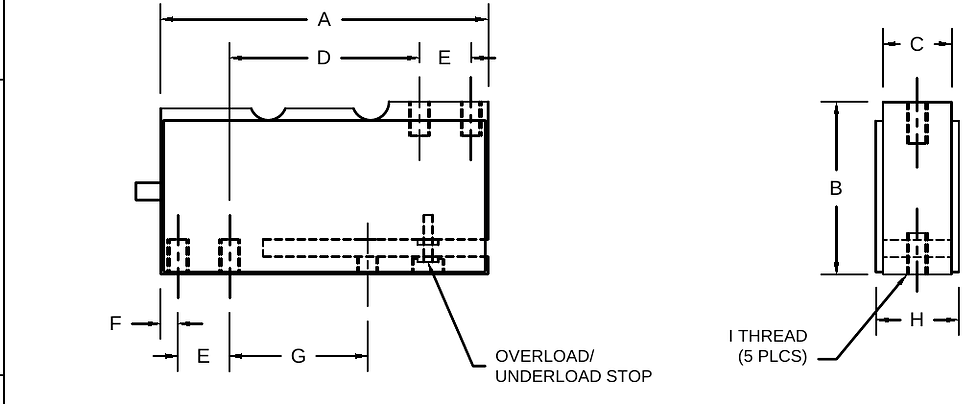

| Construction | Overload stop |
| Interchangeable With | Artech SS61010, NCI Mark IV, Rice Lake RLMK4, Weigh-Tronix Mark IV |
| Rated Output | 2.00 mV/V ±10% |
| Safe Overload | 150% FS |
| Excitation Voltage | 10-20V AC/DC |
| Input Resistance | 385 ±10 Ω |
| Output Resistance | 350 ±3 Ω |
| Zero Balance | ±1.00% FS |
| Seal Type | Environmentally Sealed, Potted, IP67 |
| Non-Linearity | ±0.03% FS |
| Hysteresis | ±0.02% FS |
| Repeatability | ±0.02% FS |
| Creep | ±0.03% FS |
| Compensated Temperature Range | -10°C to +40°C |
| Temperature Effect on Zero | ±0.02% FS/°C |
| Temperature Effect on Output | ±0.001% FS/°C |
| Insulation Resistance | >5,000 MΩ |
| Load Cell Cable | 4 Conductor, 10 FT |
| Load Cell Wiring | Green +EXC, Black -EXC, White +SIG, Red -SIG, Braid/Yellow Shield |
| Approvals | FM Approved |
Documentation:
