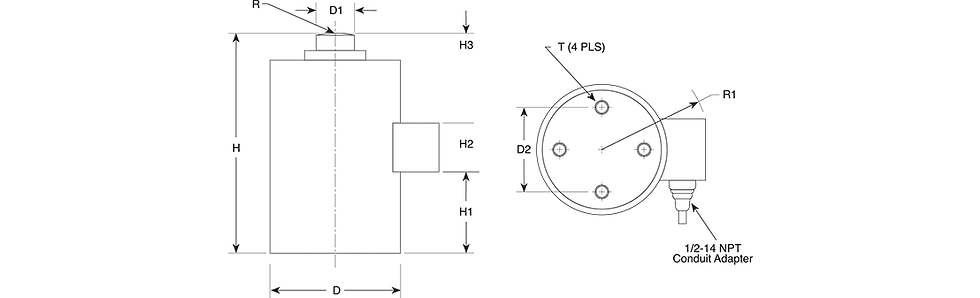

The Coti Global CG-RLC 2000KG/2T is a 2000KG/2T stainless steel low profile load cell built for industrial weighing applications such as truck and rail scales, tank, silo and hopper weighing, and process control. Full manufacturer specifications and the dimension drawing are in the tabs below.
Coti Global CG-RLC 2000KG/2T Stainless Steel Low Profile Load Cell
SKU: CG-RLC 2000KG/2T
$895.00 Regular Price
$832.35Sale Price
| Model | CG-RLC 2000KG/2T |
| Material | Stainless Steel |
| Type | Low Profile |
| Rated Capacity | 2000KG/2T |
| Capacities In This Line | 250KG, 500KG, 1000KG/1T, 2000KG/2T, 3500KG/3.5T, 5000KG/5T, 10000KG/10T |
| NTEP Approval | NTEP Rated — Class IIIL; OIML C3 (C6 for 2t-10t) |
| Rated Output | 2.00 mV/V ±0.5% of full scale |
| Safe Overload | 150% of full scale |
| Excitation Voltage | 10 V AC/DC recommended (30 V maximum) |
| Zero Balance | ±2% of full scale |
| Input Resistance | 1110 ±50 Ω |
| Output Resistance | 1025 ±25 Ω |
| Non-Linearity | 0.02% of full scale |
| Hysteresis | 0.02% of full scale |
| Repeatability | 0.01% of full scale |
| Creep (30 min) | 0.03% of load in 30 minutes |
| Accuracy Class | OIML C3 / NTEP Class IIIL (all capacities); OIML C6 (2t-10t) |
| Vmin | 0.010 (C3); 0.007 (C6); 0.010 (IIIL) |
| Compensated Temp. Range | −10°C to +40°C |
| Temp. Effect on Zero | ±0.0070% FS/5°C (C3); ±0.0045% FS/5°C (C6); ±0.0100% FS/5°C (IIIL) |
| Temp. Effect on Output | ±0.0075% FS/5°C |
| Insulation Resistance | >5000 MΩ |
| Sealing | Hermetically sealed, IP68 |
| Cable | 4-conductor, 24 AWG, Ø6 mm PVC jacket, 5 m (16.4 ft) |
| Wiring | Pink (+excitation), Gray (−excitation), Brown (+signal), White (−signal), clear shield |
| Documentation | Download the CG-RLC data sheet (PDF) |
