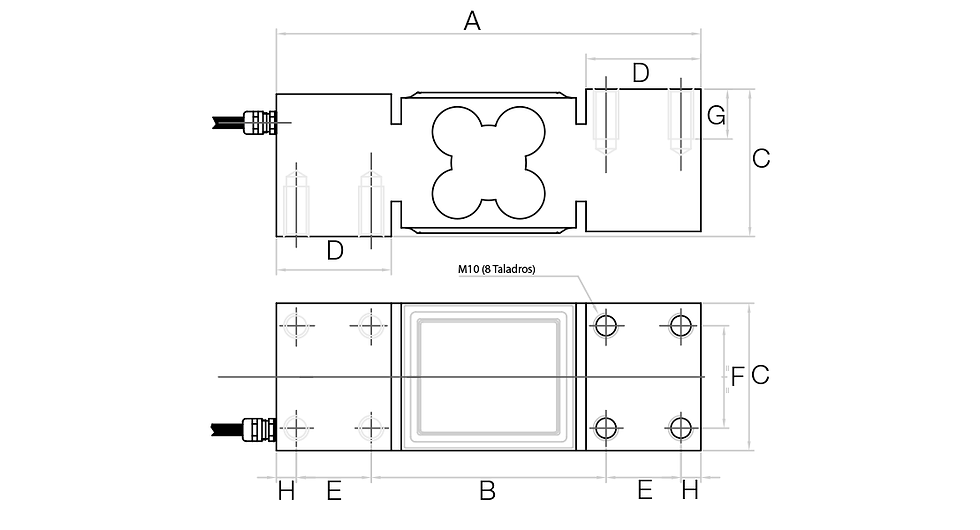

The Rice Lake RL1140 is a stainless steel single point load cell for industrial weighing. Single point load cells are used in bench scales, checkweighers, and platform scales, compensating for off-center loads. Available in capacities from 15 kg to 100 kg. This capacity is not ntep approved.
Rice Lake describes this part as: Load Cell,SPT RL1140- 100kg 10ft 2mv/v 350 Ohm FM IP65 SST Class F Potted.
This listing is the 100 kg model, Rice Lake part 17548.
Rice Lake RL1140 100 kg Stainless Steel Single Point Load Cell
SKU: 17548
$339.00 Regular Price
$315.27Sale Price
| Model | RL1140 |
| Material | Stainless Steel |
| Type | Single Point Load Cell |
| Rated Capacity | 100 kg |
| Capacities In This Line | 15 kg to 100 kg |
| NTEP | Not NTEP approved |
| Full Scale Output | 2.0 mV/V |
| Output Resistance | 350 (± 5) ohm, nominal |
| Input Resistance | 383 (± 15) ohm |
| Material/Finish | Stainless steel |
| Temperature | Operating: | 14 to 104 °F (-10 to 40 °C) | Compensated: | 14 to 104 °F (-10 to 40 °C) |
| Seal Type | Environmentally sealed, IP65 |
| Safe Overload | 200% at center loading point, | full scale |
| Rated Excitation | 5 to 10 VDC (15 V maximum) |
| Combined Error | 0.02% full scale |
| Insulation Resistance | 2,000 megohm |
| Deflection at Capacity | 0.4 mm |
| Cable Length | 10 ft |
| Cable Diameter | 0.200 in PVC jacket |
| Cable Color Code | Green +Excitation | Black -Excitation | Red +Signal | White -Signal | Blue +Sense | Brown -Sense |
| Max Platform Size | 15.75 × 15.75 in |
| Warranty | Two-year limited |
| Approvals | cFMus |
Documentation:
