The Rice Lake RLPC3SS is a stainless steel single point load cell, NTEP certified (21-017) with OIML R60 certification, environmentally sealed to IP67. Built for bench scales, checkweighers and packaging equipment.
This listing is the 150 kg model, Rice Lake part 205279.

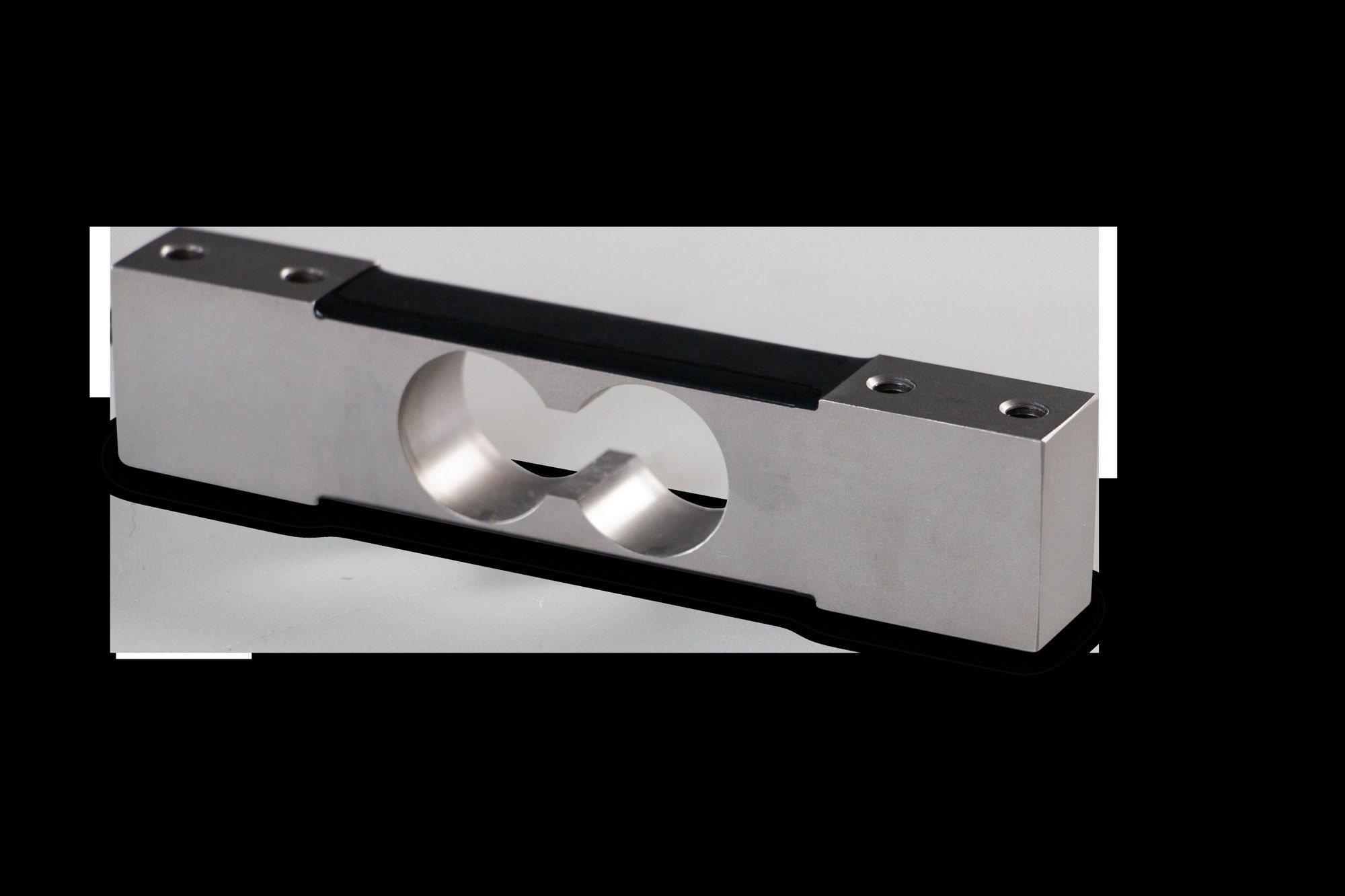

Rice Lake RLPC3SS 150 kg Stainless Steel Single Point Load Cell
SKU: 205279
$328.00 Regular Price
$305.04Sale Price
| Full Scale Output | 2 mV/V |
| Output Resistance | 350 (±10) ohm |
| Input Resistance | 385 (±15) ohm |
| Material/Finish | Stainless steel |
| Temperature | Compensated: 14 to 104 °F (-10 to 40 °C); Operating: 0 to 150 °F (-18 to 65 °C) |
| Seal Type | Environmentally sealed, IP67 |
| Safe Overload | 150% full scale |
| Rated Excitation | 5 to 10 VDC |
| Combined Error | 0.02% full scale |
| Insulation Resistance | 5,000 megohm |
| Cable Length | 10 ft |
| Cable Diameter | 0.140 in; Polyurethane jacket |
| Cable Color Code | Green +Excitation; Black -Excitation; White +Signal; Red -Signal; Yellow Shield |
| Max Platform Size | 7 to 30 kg: 350 × 350 mm; 60 to 150 kg: 450 × 450 mm |
| Warranty | One-year limited |
| Approvals | NTEP 21-017; OIML R60/2017-A-NL1-21.17 |
Documentation:
