What Is a Truck Scale Load Cell and How Does It Work?
- Cody
- Sep 13, 2025
- 4 min read
Truck scales are vital tools in industries ranging from logistics and agriculture to waste management, mining, and construction. Every day, thousands of trucks are weighed to ensure compliance with regulations, maintain efficiency, and protect against costly overloads. While a truck scale looks like a massive platform, the real work happens underneath — in the load cells.
But what exactly is a truck scale load cell, how does it work, and why does it matter so much? Let’s break it down.
What Is a Load Cell?
A load cell is a highly sensitive force sensor that converts mechanical weight into an electrical signal. In a truck scale, load cells are mounted beneath the deck where vehicles drive on. When a truck parks on the scale, its weight presses down on the load cells, which deform slightly. This tiny movement is detected by strain gauges inside the cell, which change electrical resistance in response to the applied force.
That resistance is then translated into a digital weight reading. Without load cells, truck scales would be nothing more than giant platforms with no way of recording precise measurements.
How Do Truck Scale Load Cells Work?
Most modern truck scale load cells use strain gauge technology. Here’s a simplified breakdown:
Force Applied – The truck’s weight presses onto the load cell.
Strain Gauge Response – Microscopic strain gauges inside the cell stretch or compress as the load cell bends slightly.
Resistance Changes – The strain gauges’ electrical resistance changes in direct proportion to the applied load.
Signal Conversion – The change in resistance is measured, converted into a millivolt signal, and sent to the scale’s indicator.
Weight Displayed – The indicator converts the signal into a weight reading, displayed in pounds or kilograms.
This process happens instantly and with incredible accuracy, allowing truck scales to deliver legal-for-trade measurements.
Types of Load Cells Used in Truck Scales
Truck scales don’t all use the same type of load cell. The choice depends on the environment, load requirements, and application. The most common types include:
🔹 Double-Ended Beam Load Cells
Widely used in heavy-duty truck scales.
Load is applied to the center while both ends are fixed, ensuring stability.
Models like the Coti Global CG-BE40 and Rice Lake RL75040 are industry staples.
🔹 Rocker Column Load Cells
Designed for extreme durability in outdoor or harsh environments.
Built from stainless steel and sealed to IP67 or higher.
Rocker action improves alignment under heavy loads.

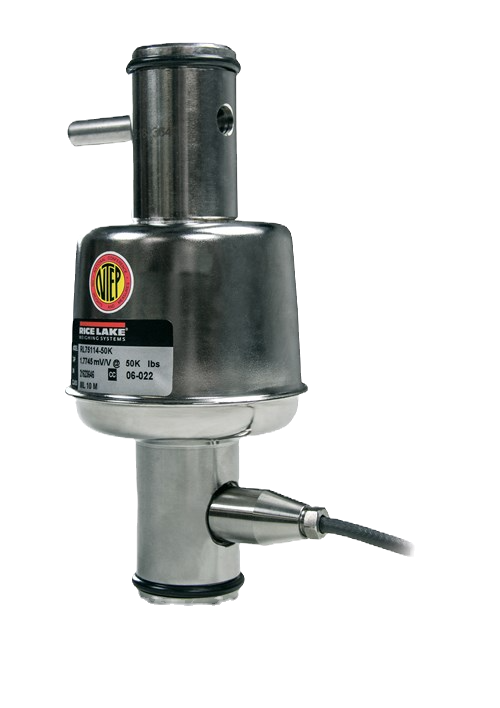

Example: Rice Lake RL75114, ideal for corrosive or washdown conditions.
🔹 Single-Ended Beam Load Cells or Weigh Bars
More common in smaller industrial platforms, not full truck scales.
Still worth noting for compact weighing systems.
Why Truck Scale Load Cells Matter
Load cells aren’t just components — they’re the heart of the system. Choosing the right load cell impacts:
Accuracy – NTEP-approved load cells ensure the scale meets legal-for-trade standards.
Durability – Alloy steel vs. stainless steel construction can mean the difference between years of reliable service and frequent replacements.
Downtime Prevention – A failed load cell can shut down operations, costing time and money.
Compliance – Many industries require certified weighing systems to comply with regulations.
How to Choose the Right Truck Scale Load Cell
When selecting a load cell, consider:
Capacity Requirements – Truck scale load cells typically range from 25K to 125K lb. Choose the correct rating for your system.
Material – Alloy steel is cost-effective and strong; stainless steel is ideal for corrosive or washdown environments.
Sealing – Look for IP67 or higher environmental sealing for outdoor applications.
Certifications – Ensure the cell is NTEP approved for legal-for-trade use.
Compatibility – Many load cells are designed to be interchangeable.
By matching these factors to your application, you’ll ensure reliability, accuracy, and compliance.
Common Causes of Load Cell Failure
Like any equipment, load cells can fail if not properly installed or maintained. The most common causes include:
Overloading beyond rated capacity.
Moisture intrusion if sealing is compromised.
Electrical surges or poor grounding.
Cable damage, often from rodents or physical wear.
Corrosion in harsh environments without stainless steel protection.
Routine inspections and preventive maintenance can significantly extend load cell life.
Maintenance Tips for Truck Scale Load Cells
To keep your system running smoothly:
Inspect load cell cables regularly for cuts, abrasions, or rodent damage.
Ensure junction boxes remain sealed and protected.
Avoid welding near load cells to prevent electrical damage.
Schedule calibration checks to maintain accuracy.
Replace load cells in matched sets when necessary to avoid imbalance.
These practices improve uptime and protect your investment.
FAQs About Truck Scale Load Cells
Q: How often should truck scale load cells be calibrated?
A: At least once a year, or more frequently in high-use environments.
Q: How do I know if a load cell is failing?
A: Inconsistent readings, drift, or error messages from the scale indicator often point to load cell issues.
Q: Are stainless steel load cells worth the cost
?A: Yes — in wet, corrosive environments, stainless steel rocker column cells dramatically outlast alloy steel models.
Q: Can I replace just one load cell in my truck scale?
A: Yes, Typically if there is an issue it will be with one load cell.
Conclusion
Truck scale load cells may be small compared to the trucks they weigh, but they’re the most important part of the system. By understanding what they are, how they work, and how to choose the right model, businesses can ensure accurate, reliable, and legal-for-trade weighing.
At American Scale Supply, we carry a full line of truck scale load cells from leading manufacturers including Coti Global and Rice Lake. Whether you need a 40K double-ended beam model or a stainless steel rocker column for harsh environments, we have the solution to keep your operations running smoothly.
